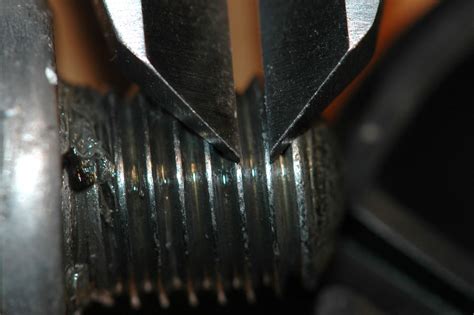

How To Measure Thread Size Of A Bolt : Thread Identification for Brake Lines - To measure the diameter of screws and bolts, you measure the distance from the outer thread on one side to the outer thread on the other side.. Measure from the outermost edge of the bolt's thread on one side to the outermost edge of the thread on the other side. For sizes of 1/4 or lower, a number is commonly used. If you are measuring imperial bolt thread size, you'll need to record the measurements as thread diameter followed by a hyphen, then the thread per inch measurement. Determine the thread pitch by counting the threads along the shaft. Measuring threads using the thread pitch gauge, align the gauge on the threads and make sure it is snug.

Measure the distance from the outer thread on one side to the outer thread on the other side. Simply slide the caliper around the threaded portion of the bolt and read the scale. This is called the major diameter and will usually be the proper size of the bolt. Follow the instructions in step 2 to find the wrench size to use for this bolt. Measure on the 4th or 5th full thread.

How To Measure Screw Thread Diameter and Pitch Using a ... from i.ytimg.com

Determine the thread pitch by counting the threads along the shaft. If your bolt is metric, then the diameter is stated using the letter m. Simply slide the caliper around the threaded portion of the bolt and read the scale. The shaft of the bolt is called the shank, and its diameter is the first dimension used to describe a bolt size. Grab a ruler and lay it along the bolt or screw. For more information on hex bolt head sizes please see our us hex bolt head/wrench size table or our metric bolt head/wrench size table. For example a m5x10 bolt has a 5mm shaft diameter and is 10mm long from the bottom of the head to the end of the fastener. You can also measure from the bottom cavity of the threads from one side to the other to find the minor diameter.

Get it as soon as wed, jun 23.

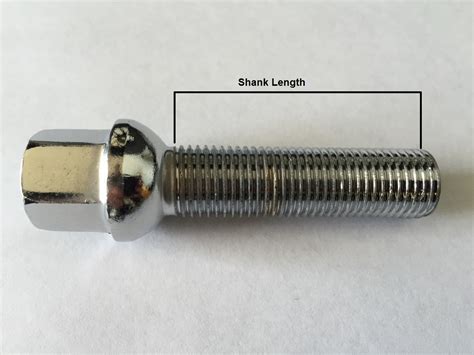

Head size can vary for the same thread diameter, especially in metric bolts, so even comparing heads to heads you may get an incompatable bolt. To calculate this manually, you can count the threads of the bolt on the entire shank and then divide the total length of the shaft by this number. If you are measuring imperial bolt thread size, you'll need to record the measurements as thread diameter followed by a hyphen, then the thread per inch measurement. This will give you the number of threads per inch, if you are measuring a standard bolt or the distance between each thread for metric bolts. Inch thread sizes are specified by diameter and threads per inch. As a general rule, the length of fasteners is measured from the surface of the material, to the end of the fastener. Measure from the outermost edge of the bolt's thread on one side to the outermost edge of the thread on the other side. Measure the male thread with the bolt gauge or digital caliper. For example a m5x10 bolt has a 5mm shaft diameter and is 10mm long from the bottom of the head to the end of the fastener. Thread pitch is a designation related to the number of threads per inch on the bolt's shank. For more information on hex bolt head sizes please see our us hex bolt head/wrench size table or our metric bolt head/wrench size table. Get it as soon as wed, jun 23. Do not measure the head of the bolt, measure the threaded part, outside of the threads.

For example a m5x10 bolt has a 5mm shaft diameter and is 10mm long from the bottom of the head to the end of the fastener. Measure the outside diameter of the bolt's threads using a vernier caliper, if the bolt is installed in your vehicle or piece of equipment and the bolt's head is not accessible to the vernier caliper. Be sure to measure the threaded (or ridged) area only, starting from near the head. Measuring threads using the thread pitch gauge, align the gauge on the threads and make sure it is snug. Determine the thread pitch by counting the threads along the shaft.

How to measure a bolt — Ricks Free Auto Repair Advice ... from ricksfreeautorepairadvice.com

For example a m5x10 bolt has a 5mm shaft diameter and is 10mm long from the bottom of the head to the end of the fastener. You can also measure from the bottom cavity of the threads from one side to the other to find the minor diameter. Measure the outside diameter of the bolt's threads using a vernier caliper, if the bolt is installed in your vehicle or piece of equipment and the bolt's head is not accessible to the vernier caliper. Because this is approximately the same as the major or thread diameter the thread diameter measurement can be used for fully threaded bolts. Inch to metric bolt conversion chart metric conversion measure the distance between the bottom of the bolt head and the opposite end of the bolt using the vernier caliper.how to measure thread size of a bolt. This is called the major diameter and will usually be the proper size of the bolt. Make sure your measurement is in a straight line across the thickest portion of the bolt. For more information on hex bolt head sizes please see our us hex bolt head/wrench size table or our metric bolt head/wrench size table.

For example a m5x10 bolt has a 5mm shaft diameter and is 10mm long from the bottom of the head to the end of the fastener.

Measure the outside diameter of the bolt's threads using a vernier caliper, if the bolt is installed in your vehicle or piece of equipment and the bolt's head is not accessible to the vernier caliper. The diameter of a bolt is the shank diameter, expressed in millimetres for metric bolts. For example, a 6mm diameter would be written as m6 for the thread diameter. Inch thread sizes are specified by diameter and threads per inch. If your threaded area is less than an inch, measure out 1/2 an inch instead. Measure the female thread with the towers of the bolt gauge or digital caliper: Determine the number of threads per inch (tpi) or the pitch (metric threads) with the. As a general rule, the length of fasteners is measured from the surface of the material, to the end of the fastener. The shaft of the bolt is called the shank, and its diameter is the first dimension used to describe a bolt size. You can also measure from the bottom cavity of the threads from one side to the other to find the minor diameter. Thread diameter which is the width of the bolts threaded section in millimeters. You measure the diameter of the shaft to come up with the m5 value. M10 x 100 bolt = 26mm thread or 1/4″unc x 2″ bolt = 3/4″ thread or 1/2″bsw x 5″ bolt = 1″ thread.

Thread pitch is a designation related to the number of threads per inch on the bolt's shank. If your threaded area is less than an inch, measure out 1/2 an inch instead. For more information on hex bolt head sizes please see our us hex bolt head/wrench size table or our metric bolt head/wrench size table. For example a m5x10 bolt has a 5mm shaft diameter and is 10mm long from the bottom of the head to the end of the fastener. Determine the number of threads per inch (tpi) or the pitch (metric threads) with the.

The Wenga Postie Bike Project -> How to use a Time-Sert ... from wenga.net

You can buy a vernier caliper for less than $10 from amazon or any home center store. The second number of a uts bolt designates the threads per inch (tpi). For metric bold thread size, the formula is the thread diameter, followed by the x symbol and then the thread pitch number. The diameter of a bolt is the shank diameter, expressed in millimetres for metric bolts. Determine the number of threads per inch (tpi) or the pitch (metric threads) with the. For example a m5x10 bolt has a 5mm shaft diameter and is 10mm long from the bottom of the head to the end of the fastener. Thread pitch is a designation related to the number of threads per inch on the bolt's shank. Measure the male thread with the bolt gauge or digital caliper.

Measure the distance from the outer thread on one side to the outer thread on the other side.

This is called the major diameter and will usually be the proper size of the bolt. Grab a ruler and lay it along the bolt or screw. Measure the bolt thread pitch using a thread pitch gauge, which you can buy in most tool or auto parts stores. Measure from the outermost edge of the bolt's thread on one side to the outermost edge of the thread on the other side. This can be done using calipers or a bolt gauge. Thread diameter which is the width of the bolts threaded section in millimeters. For fasteners where the head usually sits above the surface such as hex bolts and pan head screws, the measurement is from directly under the head to the end of the fastener. For sizes of 1/4 or lower, a number is commonly used. Head size can vary for the same thread diameter, especially in metric bolts, so even comparing heads to heads you may get an incompatable bolt. If your threaded area is less than an inch, measure out 1/2 an inch instead. Measure the thread diameter using a caliper to determine the diameter and measure on the thread tops. Measure the male thread with the bolt gauge or digital caliper. Measure the female thread with the towers of the bolt gauge or digital caliper:
